Détails sur le produit:
Conditions de paiement et expédition:
|
| Taille de carte PCB: | longueur 250mm*any | bride de carte PCB ; ing: | pression réglable pneumatique |
|---|---|---|---|
| Système: | windows7 | Logiciel: | R&D indépendamment |
| Affichage: | moniteur d'écran tactile | périphérique d'entrée: | clavier, souris |
| Non de la caméra: | 5 | Puissance: | 380AC 50HZ |
| consmption de puissance: | 6kw | mode de support: | Groupez le bâton de cent de prise, bâton de cent de prise de cent |
| L'espace de composants: | 0.2mm | stations de conducteurs: | 64PCS |
| Becs: | 64PCS | Vitesse de support: | 200000CPH |
| Taille de support: | 13mm |
product details
Producing with 2～４ types of materials with capacity at same time, available for 5m,50m or any length of flexible strip and roll to roll.
Dual-arm four modules with 17 nozzles for each mounting part, and part A/B/C/D can be mounted separately or synchronously.
Calibration automatically, high precision.
Group to take and group to mount.

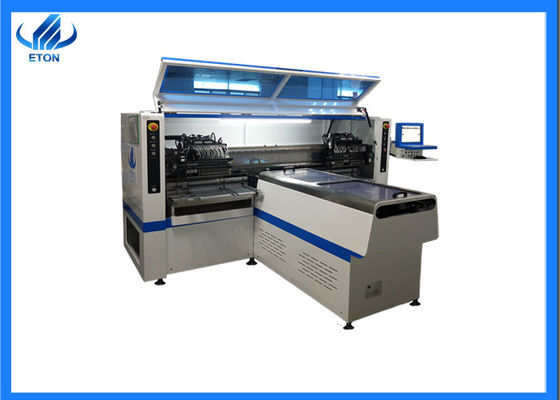

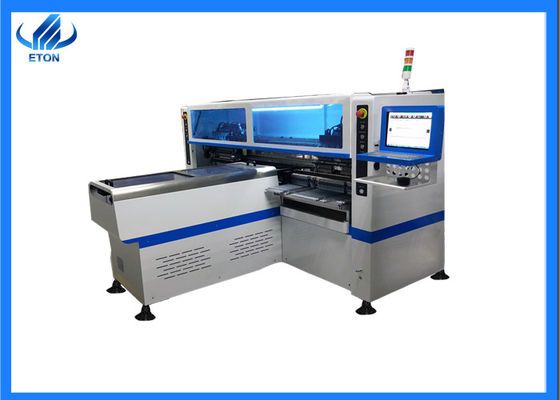

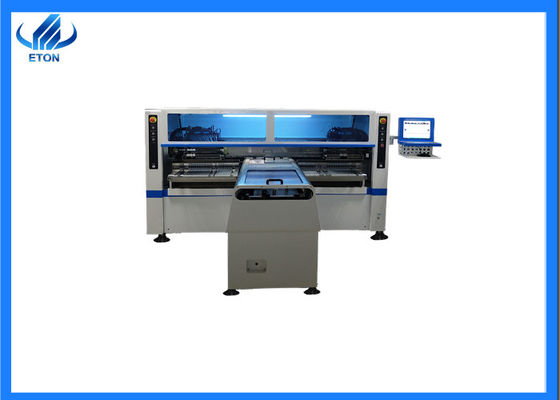

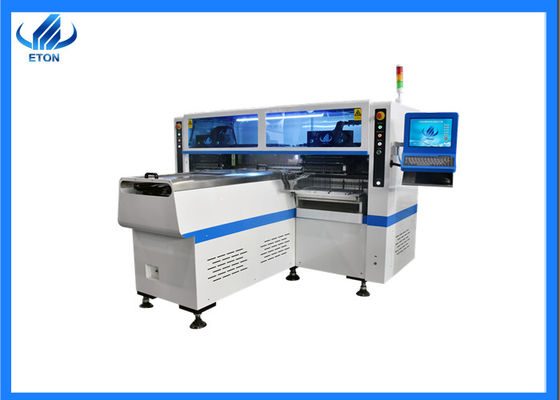

product Technical parameters of high speed pick and place machine
| Model number | HT-F9 |
| Dimension | 2700*2120*1550mm |
| PCB size | 1200*330～80*330mm |
| PCB thickness | 0.5～5mm |
| PCB clamping | adjustable pressure pneumatic |
| mounting mode | group to take and group to mount |
| system | windows 7 |
| display | touch screen monitor |
| input device | keyboard,mouse |
| NO.of camera | 5 sets of imported camera |
| mounting precision | ±0.03mm |
| mounting height | <13mm |
| mounting speed | 200000CPH |
| components | LED3014/3020/3528/5050 and resistors, capacitors, bridge rectifiers |
| components space | 0.2mm |
| NO.of feedings station | 68pcs |
| NO.of nozzles | 68pcs |
| power | 380AC 50HZ |
| power consumption | 6KW |
| operating environment | 23℃±3℃ |
| conveyor transmission | MAX length:1200mm |
| transmission speed | >500mm/sec |
| transmission direction | single(left→right,right→left) |
| transmission mode | online drive |
| position mode | optical |
| air pressure | >5.0kg/c㎡ |
| electrical control | independent research and development by ETON |
| motion control card module 1set | independent research and development by ETON |
| X.Y axis drive way | high-end magnetic linear motor+servo motor |
| feeding way | electric feeder with double motor |
Business terms of smt mounter
| Accepted delivery terms | EXW, FOB, CIF, CFR |
| Accepted payment currency | USD,CNY |
| Accepted payment type | L/C, T/T |
| Nearest port | Shenzhen |
product parts of smt mounter
Packing & delivery of smt mounter machine
Company profile
trade show
contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825
Industry related knowledge
Common sense of selection:
If the liquid has quartz powder or other abrasive powder additives, it is recommended to use piston volume metering products.
If there are additives in the liquid and there is a more serious precipitation phenomenon, do not use gear metering type.
The two-liquid mixing method needs to be proportional to the viscosity difference to decide the use of static or dynamic mixing.
A,B the viscosity difference between the two liquids is too large or the ratio is above 5:1, a dynamic mixer is required.
Cooperate with automation equipment, please install high and low level detector.
If the liquid will crystallize, in addition to the rubber storage barrel, the supply line must be added temperature control.
When the amount of glue used in daily work is large, the feeding pump can be used to replace the rubber storage barrel.
