Détails sur le produit:
Conditions de paiement et expédition:
|
| Taille de carte PCB: | 80*330mm~1200*330mm | bride de carte PCB ; ing: | pression réglable pneumatique |
|---|---|---|---|
| Système: | windows7 | Logiciel: | R&D indépendamment |
| Affichage: | moniteur d'écran tactile | périphérique d'entrée: | clavier, souris |
| Non de la caméra: | 5 | Puissance: | 380AC 50HZ |
| consmption de puissance: | 5KW | mode de support: | Groupez le bâton de cent de prise, bâton de cent de prise de cent |
| L'espace de composants: | 0.2mm | stations de conducteurs: | 68PCS |
| Becs: | 34PCS | Vitesse de support: | 150000CPH~180000CPH |
| Taille de support: | 13mm |
product details
Components: LED3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers,etc.
Application: 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip.

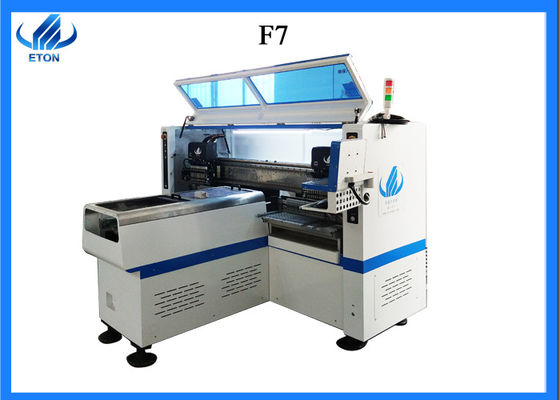

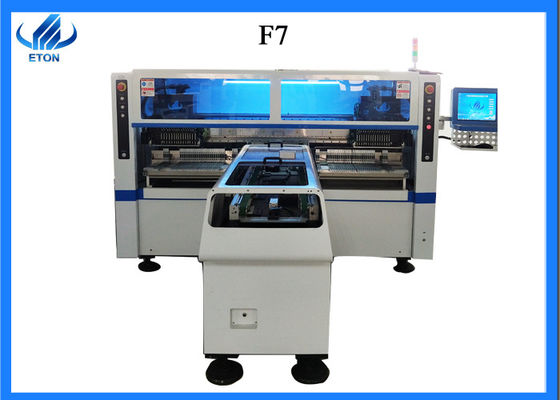

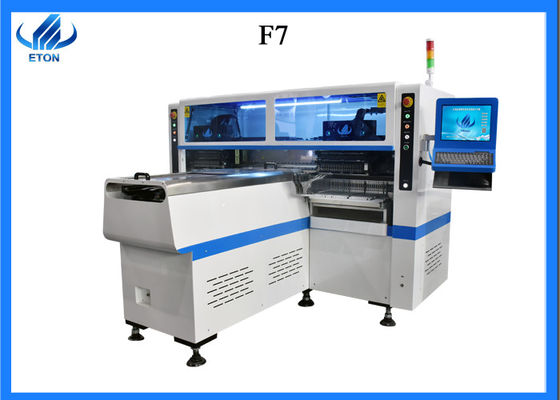

product Technical parameters of high speed pick and place machine
| Model number | HT-F7 |
| Dimension | 2700*2120*1550mm |
| PCB size | 80*330～1200*330mm |
| PCB thickness | 0.5～5mm |
| PCB clamping | adjustable pressure pneumatic |
| mounting mode | group to take and group to mount |
| system | windows 7 |
| display | touch screen monitor |
| input device | keyboard,mouse |
| NO.of camera | 5 sets of imported camera |
| mounting precision | ±0.02mm |
| mounting height | <13mm |
| mounting speed | 200000CPH |
| components space | 0.2mm |
| NO.of feedings station | 68pcs |
| NO.of nozzles | 34pcs |
| power | 380AC 50HZ |
| power consumption | 6KW |
| operating environment | 23℃±3℃ |
| conveyor transmission | MAX length:1200mm |
| transmission speed | >500mm/sec |
| transmission direction | single(left→right,right→left) |
| transmission mode | online drive |
| position mode | optical |
| air pressure | >5.0kg/c㎡ |
| electrical control | independent research and development by ETON |
| motion control card module 1set | independent research and development by ETON |
| X.Y axis drive way | high-end magnetic linear motor+servo motor |
| feeding way | electric feeder with double motor |
Business terms of smt mounter
| Accepted delivery terms | EXW, FOB, CIF, CFR |
| Accepted payment currency | USD,CNY |
| Accepted payment type | L/C, T/T |
| Nearest port | Shenzhen |
Packing & delivery of smt mounter machine
Company profile
Our Our certificates and certifications
our clients
contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825
Industry related knowledge
SMT equipment is the precision equipment of mechatronics, and it is an important method to improve the efficiency of SMT production line to implement strict and effective management measures in the work. For example, the additional components to be installed in advance on the spare feeder; the production line assembly of the last few pieces of the previous batch number at the same time, to do a good job in the production line next batch number product preparation and so on.
SMT production line is a large production line, the output value is calculated in seconds. In addition to equipment and environmental factors, human factors play an important role in improving production efficiency. Pay special attention to the training of employees, in addition to regular professional skills training, professional SMT books and periodicals for teaching materials to organize staff learning, cultivate love for SMT, improve everyone's comprehensive business level.
