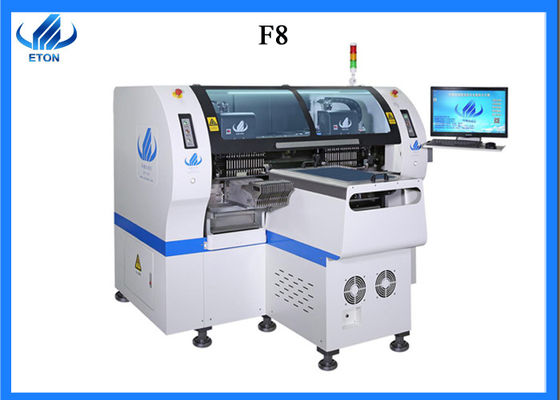

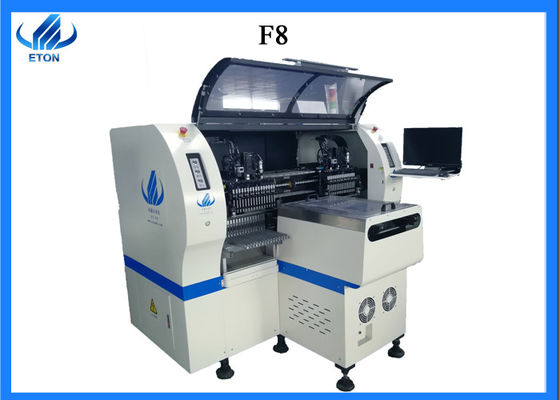

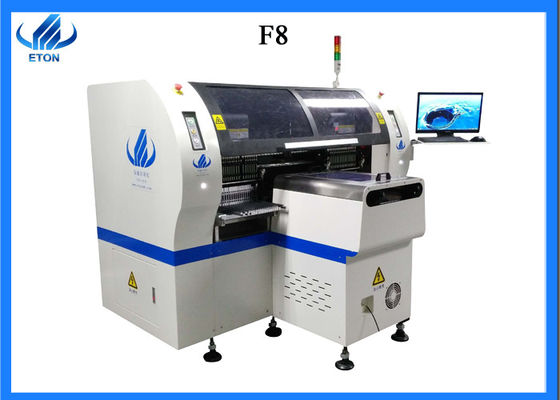

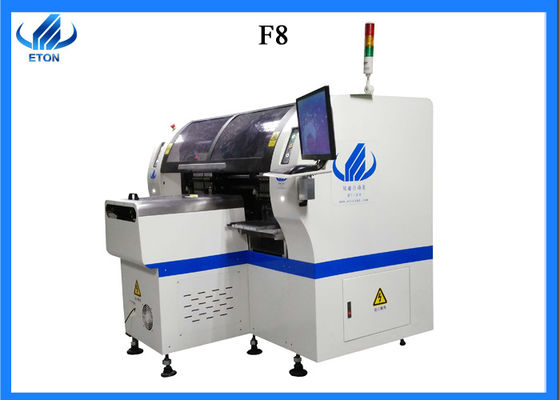

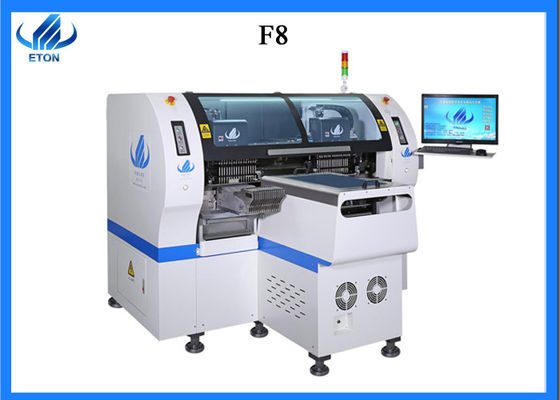

Image Grand :  smt equipment high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor

Détails sur le produit:
Lieu d'origine: La Chine
Nom de marque: eton
Certification: ccc,ce,sira
Numéro de modèle: ht-f8
Document: Brochure du produit PDF
Conditions de paiement et expédition:
Quantité de commande min: 1 unité
Prix: $75000.00/unit
Détails d'emballage: Emballage matériel imperméable et cas en bois
Délai de livraison: 30 jours de travail
Conditions de paiement: L/C, T/T
Capacité d'approvisionnement: 80 unités par mois
Contact
Description de produit détaillée
Taille de carte PCB: 80 * 110 mm ~ 345 * 600 mm bride de carte PCB ; ing: pression réglable pneumatique
Système: windows7 Logiciel: R&D indépendamment
Affichage: moniteur d'écran tactile périphérique d'entrée: clavier, souris
Non de la caméra: 5 Puissance: 380AC 50HZ
consmption de puissance: 5KW mode de support: Groupe de groupe de bâton
L'espace de composants: 0.2mm stations de conducteurs: 32pcs
Becs: 32pcs Vitesse de support: 150000CPH
Taille de support: 15mm





1.product details



Components of pick and place machine ht-f8 can mount include LED2121/2727/3528/5050 and resistor,capacitors,bridge rectifiers,etc.

SMT mounter ht-f8 is especially applies to LED display. Max mounting height is 15mm,mounting speed is 150000CPH.



smt equipment high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 0





2.product Technical parameters​  of high speed pick and place machine



Model number HT-F8
Dimension 1600*1900*1550mm
PCB size 80*110～345*600mm
PCB thickness 0.5～5mm
mounting mode group to take and group to mount
system windows 7
display LED monitor
input device keyboard,mouse
NO.of camera 5 sets of imported camera
mounting precision ±0.02mm
mounting height <15mm
mounting speed 150000CPH
components space 0.2mm
NO.of feedings station 32pcs
NO.of nozzles 32pcs
power 220AC 50HZ
power consumption 5KW
operating environment 23℃±3℃
conveyor transmission MAX length:1200mm
transmission speed >500mm/sec
transmission direction single(left→right,right→left)
transmission mode Auto online drive
position mode optical
air pressure >5.0kg/c㎡
electrical control independent research and development by ETON
motion control card module 1set independent research and development by ETON
X.Y axis drive way servo motor
feeding way electric feeder with double motor

smt equipment high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 1





 3.product features of smt pick and place machine

  • X,Y,Z drive way is high-end magnetic linear motor+servo motor.
  • PCB clamping is adjustable pressure pneumatic.
  • Vision for the flight identification ,mark correction.
  • Electronic feeder feeding system.
  • Non-stop material re-loading function.
  • Auto-optimization after coordinates generated.

smt equipment high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 2






4. The warranty



Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.








5.Packing & delivery of smt mounter machine



smt equipment high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 3












5.Company profile



smt equipment high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 4

smt equipment high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 5



smt equipment high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 6

Business terms:



Accepted delivery terms EXW, FOB, CIF, CFR
Accepted payment currency USD,CNY
Accepted payment type L/C, T/T
Nearest port Shenzhen



6.Our  Our certificates and certifications



smt equipment high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 7





7. trade show


smt equipment high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 8





8. FAQ

smt equipment high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 9











smt equipment high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 10







contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825













Industry related knowledge





  • Features of Multifunctional Placement Machine
  • Multi-function placement machine can mount high-precision large, special-shaped components, generally can also mount small flake components, can cover almost all components range, so called multi-function placement machine.
  • The structure of multi-function placement machine mostly adopts arch frame structure, which has the characteristics of high precision and good flexibility.
  • The multi-function placement machine mostly uses the circuit board fixed type, uses the mount head movement to realize the X and the y localization, will not cause the large or the heavier component to shift because of the inertia because of the table surface movement.
  • Multi-function patch can accept all material packing methods, such as reel, tube, box and tray. In addition, when more disk material, can be added multi-layer special tray feeder.
  • In addition to the traditional vacuum suction nozzle, the multi-function placement machine can use a special suction nozzle for the components which are difficult to absorb by special shape. In addition, pneumatic claw can be used for the components which are absorbed by vacuum suction nozzle.
  • The multi-function placement machine components generally use the upper view camera when correcting, which has the functions of front light, side light, backlight and online light, and can identify different components. If the size of the component is too large to exceed the camera's individual image (FOV), the upper camera can also be analyzed and corrected by multiple post-image synthesis. Some multi-function mounting machine mount head also equipped with mount head moving camera, can identify smaller non-carrying components.
  • Compared with the high-speed mounting machine, some high-speed mounting machines can reach 5~10 times faster than the multi-function machine can mount the same components. Therefore, in medium and large-scale production, generally according to the characteristics of the product will be reasonable configuration, so that the efficiency of each equipment is close to high.
