| Composants applicables: | 0402, 0805, 0603, 1206, CONCESSION | Alimentation d'énergie: | 220V/110V, AC220V 50Hz/AC110V 60Hz, AC220V/110V 50Hz, C.A. triphasé 200/208/220/240/380/400/416 V +/ |
|---|---|---|---|
| Nom de produit: | Placez la machine d'Assemblée de la machine \ LED Mounter \ LED, tireur automatique de support de SM |
product details

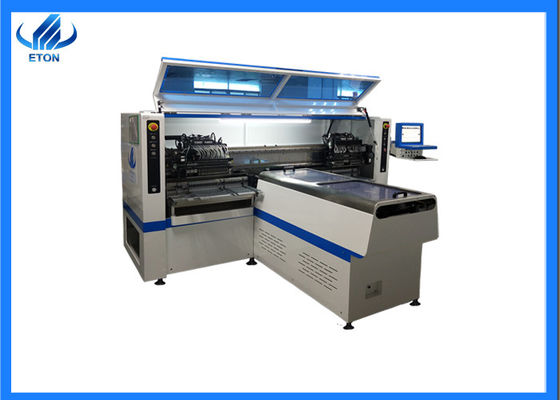

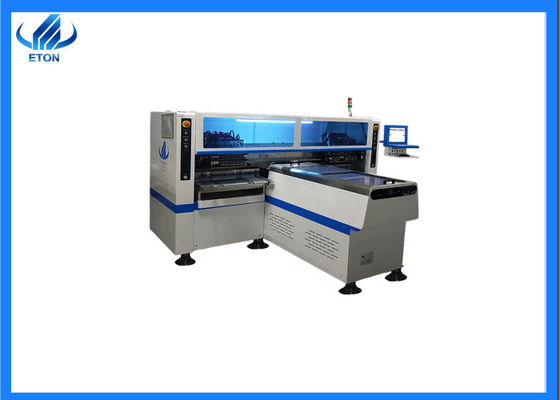

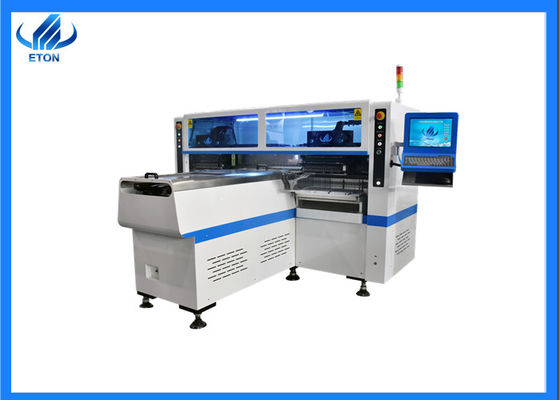

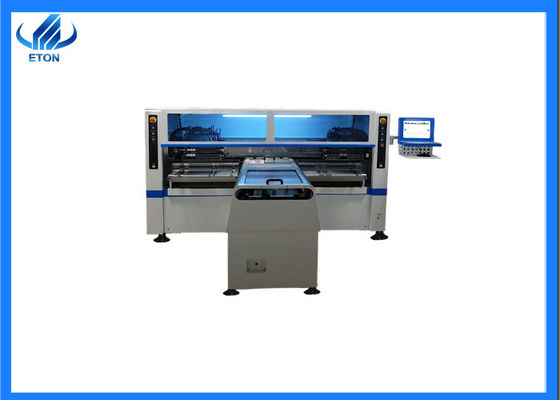

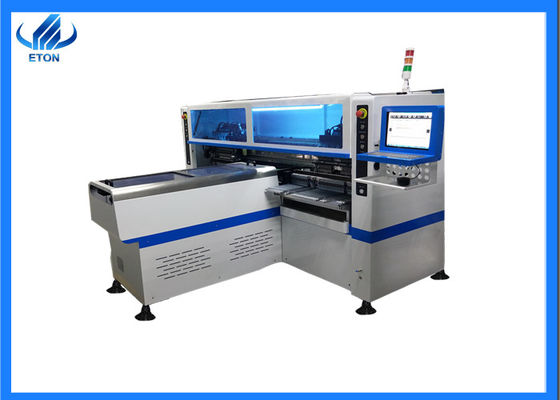

HT-X9 is dual-arm magnetic levitation LED high speed pick and place machine.the capacity reach 200000CPH.It is Suitable for 0.5M,1M Strip, Tube and Panel Light.it can mount LED 3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers,etc.
technical parameter of smt mounter ht-x9
| Model number | HT-X9 |
| Dimension | 2450*2100*1550mm |
| PCB size | 250mm*any length |
| PCB thickness | 0.5～1.5mm |
| PCB clamping | adjustable pressure pneumatic |
| mounting mode | group to take and group to mount |
| system | windows 7 |
| display | touch screen monitor |
| input device | keyboard,mouse |
| NO.of camera | 5 sets of imported camera |
| mounting precision | ±0.02mm |
| mounting height | <13mm |
| mounting speed | 200000CPH |
| components space | 0.2mm |
| NO.of feedings station | 64pcs |
| NO.of nozzles | 64pcs |
| power | 380AC 50HZ |
| power consumption | 6KW |
| operating environment | 23℃±3℃ |
| conveyor transmission | any length |
| transmission speed | >500mm/sec |
| transmission direction | single(left→right,right→left) |
| transmission mode | online drive |
| position mode | optical |
| Air Force | 0.5mpa |
| electrical control | independent research and development by ETON |
| motion control card module 1set | independent research and development by ETON |
| X.Y axis drive way | high-end magnetic linear motor+servo motor |
| feeding way | electric feeder with double motor |
product parts of pick and place machine ht-x9
Producing with 2～4 types of materials with high capacity at same time.
Single plate material can be mounted, and the same plate material is always mounted on the same lamp.
Dual-arm four modules with 16 nozzles for each mounting part, and part A/B/C/D can be mounted separately or synchronously.
Calibration automatically.
Exclusive patent technology:group to pick and group to mount.
